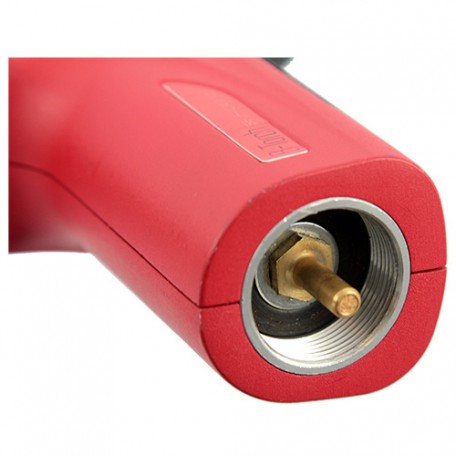

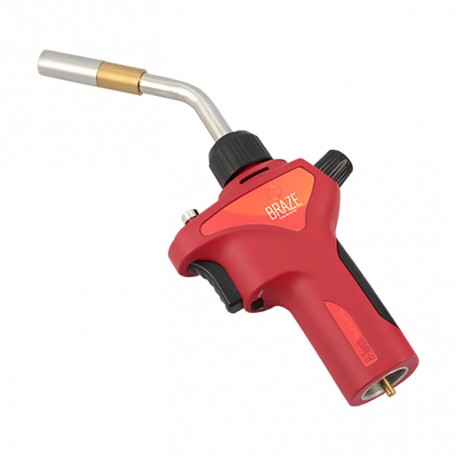

B-TORCH is a high performance flame torch for brazing with piezoelectric starter.It's employed in all high end brazing operations.

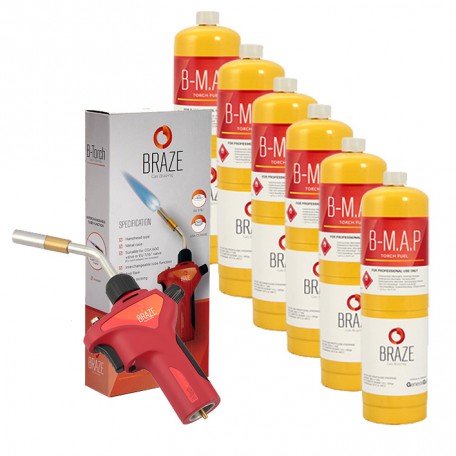

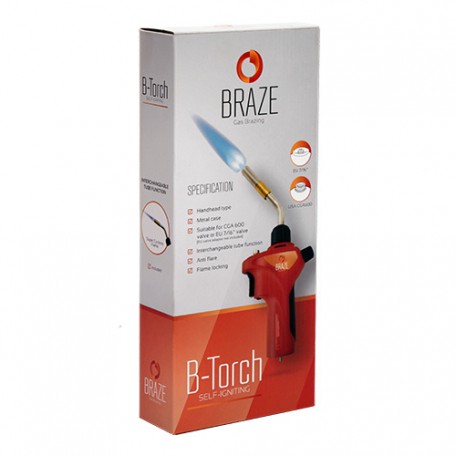

The kit includes a box containing:

B-TORCH - The torch can be used with any blend of flammable gases - torch/ cylinder connector CGA600 - gas flow rate control valve - flame stop buttom.
N° 1 SUPER CYCLON FLAME nozzle.

B-Torch can be used also with Medium Cyclon Flame nozzle and Fine-Flame nozzle, which are not included in the package.

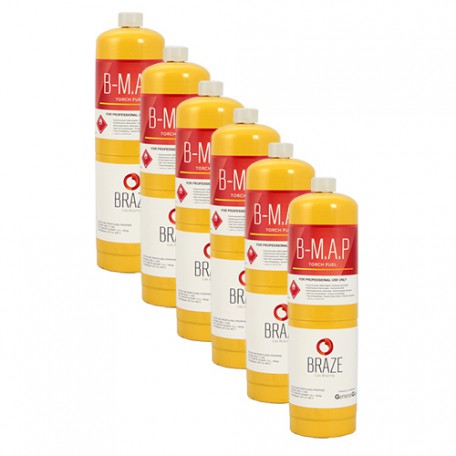

B-M.A.P. is a blend of special gases with high calorific value, suitable for brazing and braze welding operations. Flame temperature can be as high as 3.100°C and it’s 35% faster than propane. The B-M.A.P. cylinders are made of steel (built in compliance with EN12205 regulation); Its capacity is of 1 litre and contains 420 grams of product - CGA 600 Valve. Available in 12 and 6 cylinders packages.

Brazing

Soldering up to 450°C.
Brazing from da 450 a 1100°C.

Performance

B-M.A.P. presents a high calorific value when mixed with either oxygen or air, resulting in higher speed of heat transfer to the metal, making welding operations quicker.
Use of non-toxic components and no chance of backfiring guarantee highest safety for operators.
Steady performance.

EAN	8052740119513
ASHRAE Flammability Classification	A3
Contents	0.42 kg
Packaging Overall Dimensions	235 x 160 x (H) 295 mm.
Package weight	6.2 Kg.
Valve Type	Single Phase (vapour only)
Valve Outlet	CGA 600
Item number	G-ABA-BTORCH-01 + G-ABB-BMAP-1L-6
Packaging	Cardboard box

Data sheet	Signup or Signin for Download
Material Safety Data Sheet	Signup or Signin for Download
TDS B-Torch	Signup or Signin for Download
