Testo 770 clamp meter is ideally suited for current measurement in switching cabinets.
One of the two pincer arms can be fully retracted into the instrument; this unique grab mechanism means that cables in tight switching cabinets can be easily grabbed.
The automatic measurement parameter detection also ensures reliable work: in the current and voltage area, the instrument detects direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.
The testo 770-3 model providesr daily measuring tasks, including starting current measurement, μA area as well as a temperature measurement by means of an optional thermocouple adapter type K.
The testo 770-3 also calculates all output ratings, has a Bluetooth interface and the possibility of connecting to the testo Smart App to show the measuring profile as a graph or to document it directly in a report.
Unique grab mechanism makes it easier to work at tight measuring points
Auto AC/DC for current and voltage
Large two-line display
True root mean square measurement - TRMS
With additional functions, such as starting current, power and μA measurement
Bluetooth and testo Smart App

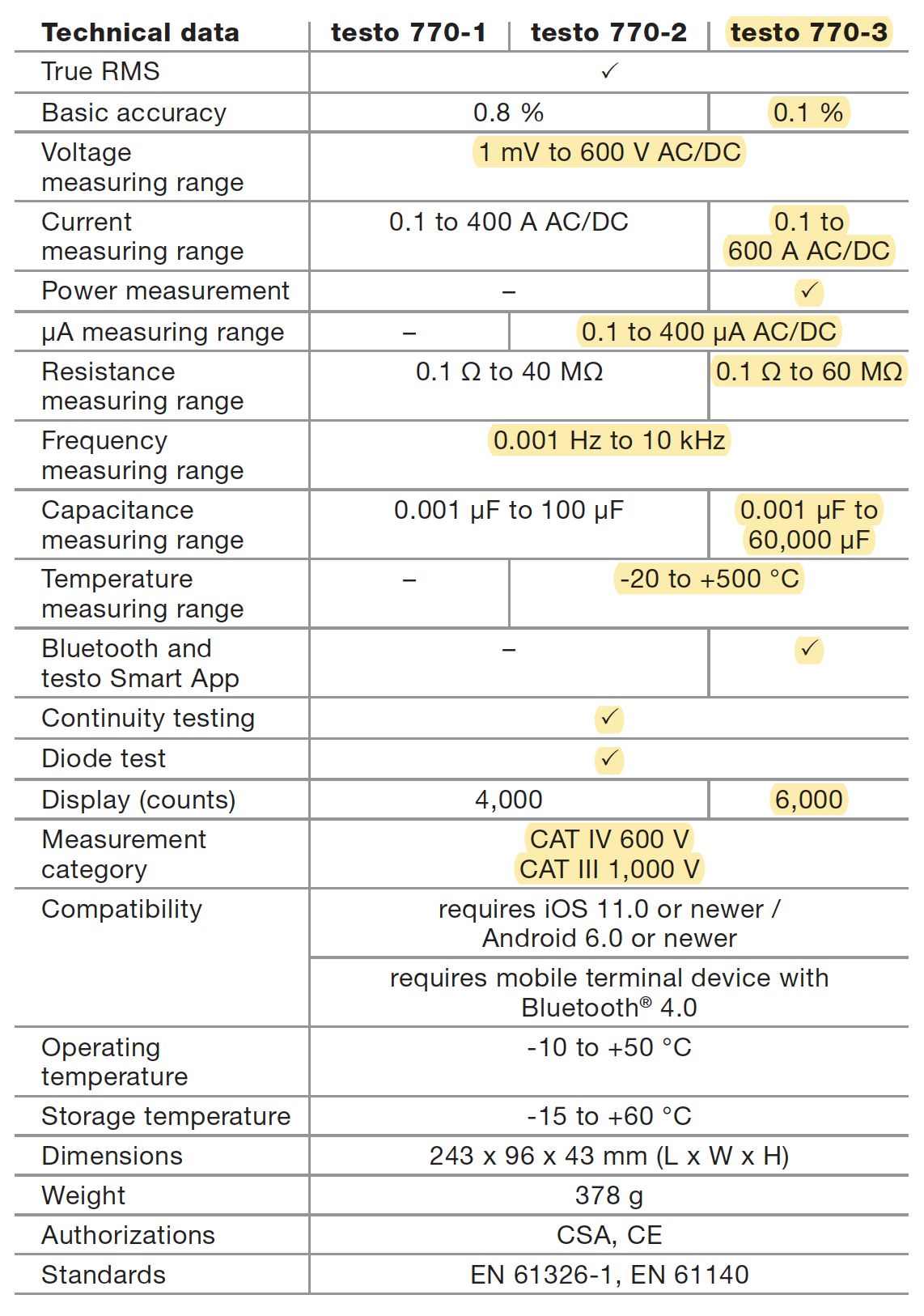

Technical Specifications model 770-3 with Bluetooth connection:
